Dometic Grande AIR All-Season 390 S 9120001109 2023

DOMETIC GRANDE AIR ALL-SEASON 390 S 9120001109

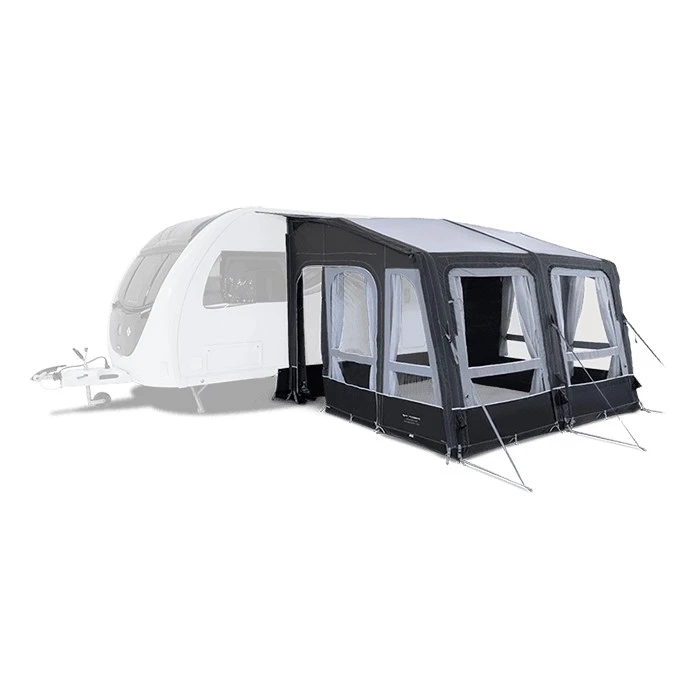

Updated for 2021, the Grande AIR All-Season S is an inflatable seasonal pitch awning for both caravans and motorhomes with a massive three metre depth. For fitting heights between 235-265cm.
Designed to be pitched for extended periods to cope with UV degradation with every component selected to cope with inclement weather.
The Grande AIR All-Season utilises Four Season breathable fabric which has been tried and tested in the most extreme of conditions.
With Dual Beading it will now connect to both caravan awning rails and motorhome cassette awnings alike.
The new Multi-Height System not only fits a larger variation in fitting heights but with its clever adjustable gusset side panels it can be set to fit even closer to you vehicle without the need of a step or ladder.
Once the Multi-Height System has been set for the first time you are free to pitch and take down without the need for further adjustment.
This awning is also incredibley veratile, with optional extensions can be fitted to either or both sides outside of the straight restrictions of your caravan.
It’s easy, just simply zip-on and inflate with each extension increasing the total awning width by 1.9 metres whilst maintaining the awning’s generous height and depth throughout.
Without the extension you can add a All-Season Tall Annexe including a 2 berth Inner Tent.
Also an optional extra is the Ace Air Side Wing, a convenient addition providing shelter, shade, social space and rain porch.
Another change is the Apex ventilation on each back corner for greater comfort and increased air ventilation.
The Dual-Pitch Roof System provides great headroom and makes best use of inside space with a more upright front.
Features
• Breathable Weathershield™ Four-Season
• NEW Multi-Height System to fit caravans or motorhomes from fitting height 235-265cm
• NEW Dual-Beading to fit caravan track of motorhome cassette awning track
• NEW Integral Inflatable front Canopy
• NEW Apex Ventilation providing better air circuation and comfort

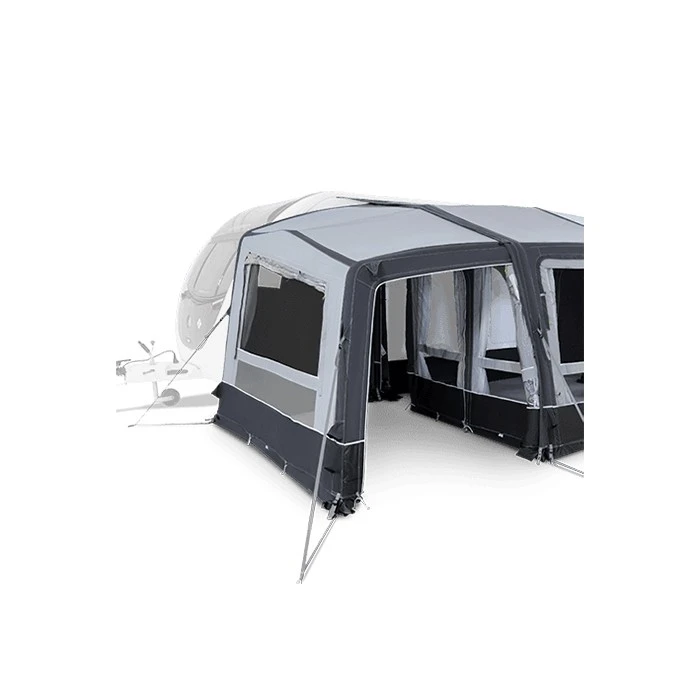

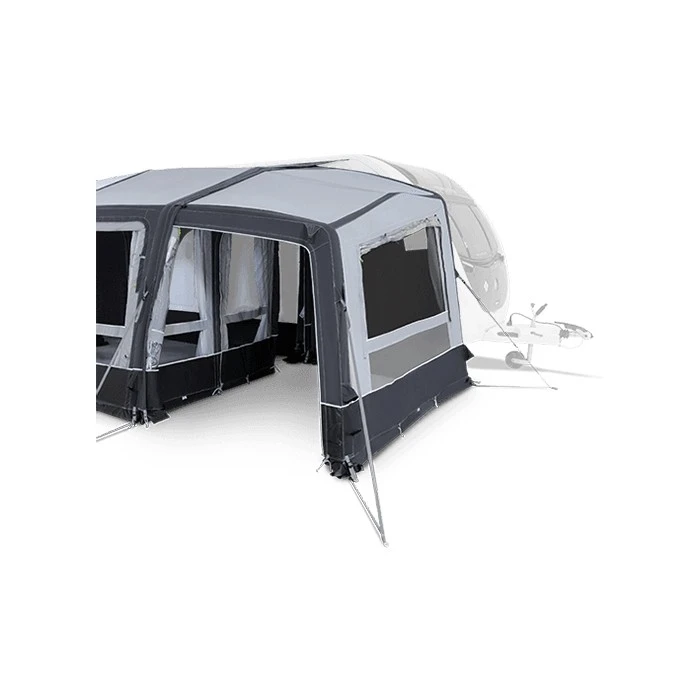

• NEW Optional Ace Air Extensions to fit left or right or both (handed)
• NEW Optional Ace Side Wing to provide extra shelter or shade

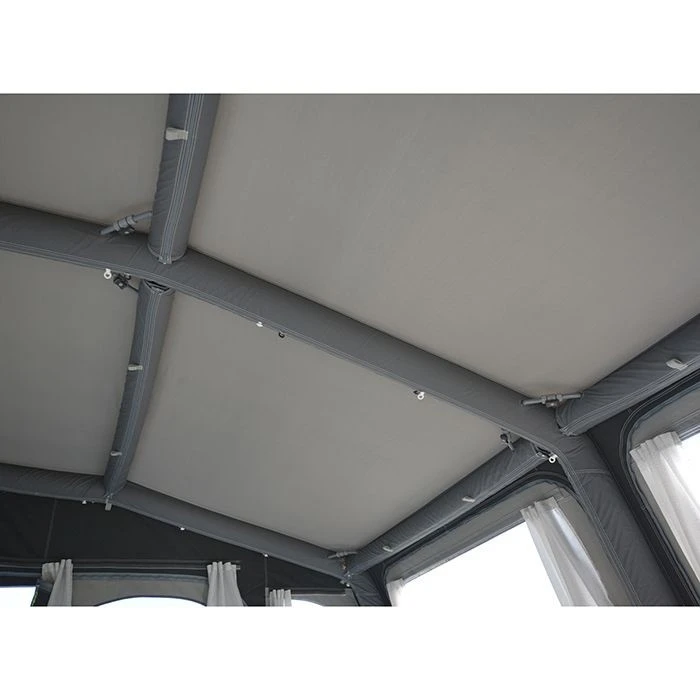

• TPU AirFrame with one-point inflation
• Dual-Pitch Roof System
• Seams sewn with waterproof thread

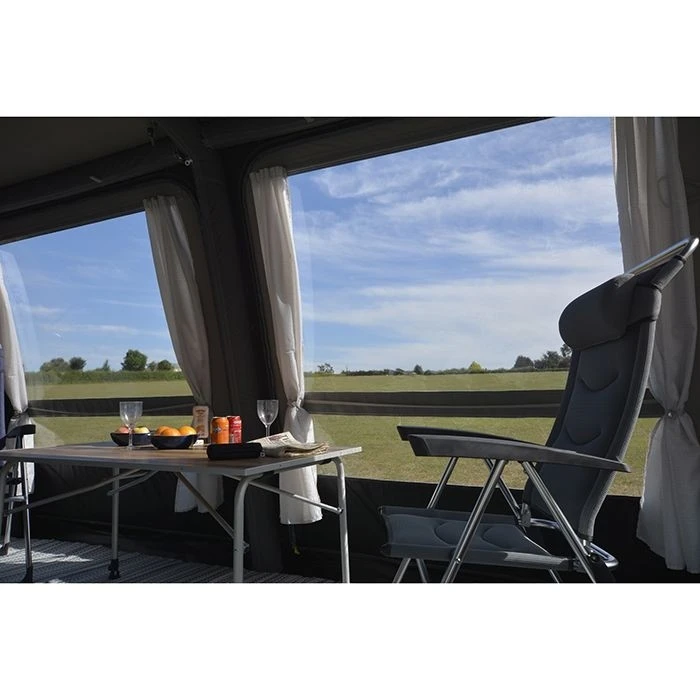

• Windows – Crystal Clear for a great view out
• Curtains on all windows
• Flyscreen in side door panels
• Large flyscreen in right-hand side window
• QuickPitch™ webbing straps – stronger and quicker than guylines
• Zips: Kampa heavy duty no. 10 with weather protection
• Seal to caravan – bumper pads with optional rear upright poles or Limpet™ Fix System
• Draught skirt included – Optional Limpet Wheel Arch Cover (Single or Double)
• Zip-out side panels with opening doors
• Roll-to-side front panels
• Side doors with mesh panels
• Oversized carry bag
• AccessoryTrack™ – ready to accept optional equipment
• SabreLink™ Ready – easy fitment of SabreLink™ lighting
• Mesh Panel Ready – The zip-in panels fit behind the front panels and can remain in place
• Limpet™ Fix System Ready
• Complete with our high volume Downdraught pump
• Complete with Storm Tie Down Kit

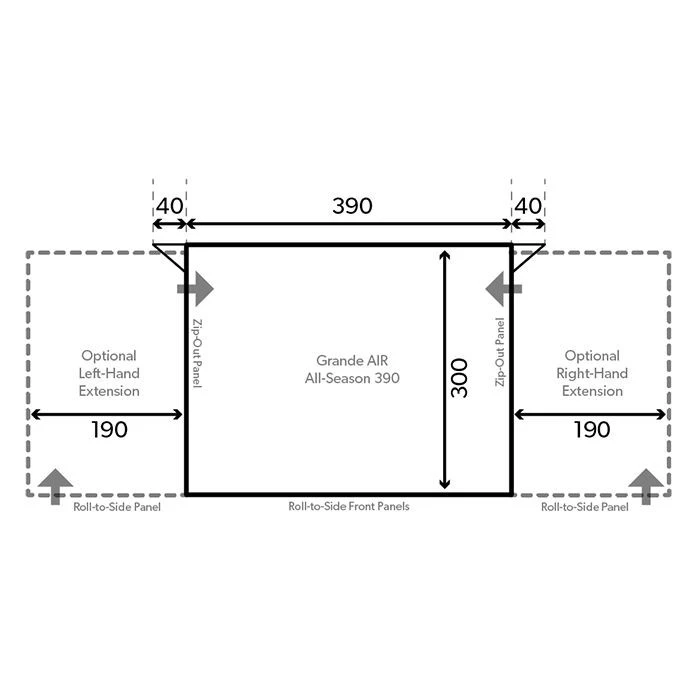

• Width: This awning requires at least 390cm of straight caravan awning rail or cassette awning track
• Weight: 21.9kg

Specifications Product Code Width Depth 1st Pack Size Min Weight Weight
Grande AIR All-Season 390 9120001109 390 cm 300 cm 97 x 45.5 + 108 x 20 31.8 + 7.04 kg 30.8 kg
Grande AIR All-Season Extension L/H 9120001141 190 cm 300 cm 83 x 31 16.7 kg
Grande AIR All-Season Extension R/H 9120001142 190 cm 300 cm 83 x 31 16.7 kg
Grande AIR Extension Inner Tent L/H 9120001201 180 cm 275 cm
Grande AIR Extension Inner Tent R/H 9120001202 180 cm 275 cm
All-Season Tall Annexe 9120001169 180 cm 200 cm 85 x 31 12.0 kg

PLEASE NOTE THIS AWNING IS NOT SUITABLE FOR PERMANENT OR SEASONAL PITCHING. THIS INCLUDES FREQUENT USE IN HIGH UV CONDITIONS.
